An expanded version of our popular 17' Cruising Catboat, this larger sister has almost twice the room in her proportionately larger hull. She's the answer for those who are in love with the 17' Catboat, but who'd like something "just a little bigger". She has 6'-2" standing headroom and the practicality of the traditional catboat hull about her.
The catboat and topsail cutter rigs give the boat some interesting options. The topsail cutter is the designer's favorite, with the variety of sails making her versatile and easily handled in a variety of conditions with a high fun quotient.
Her heavy displacement gives a great comfort to being aboard, and her hull form with the ballast on the keel give her great stability for carrying sail in a strong breeze. She has very high sail area to wetted surface and displacement ratios to assure good sailing performance in light airs too.
| Particulars: | Imperial | Metric | ||
|---|---|---|---|---|
| Units | Imperial | Metric | ||
| Length overall | 22'-0" | 6.71 m | ||
| Length designed waterline | 4.88 m | 6.10 m | ||
| Beam | 9'-8" | 2.95 m | ||
| Draft | 4'-6" | 1.37 m | ||
| Freeboard: Forward | 4'-3 1/4" | 1.30 m | ||
| Least | 2'-7 3/8" | 0.80 m | ||
| Aft | 3'-0" | 0.91 m | ||
| Displacement*, cruising trim. | 8,800 lbs. | 3,992 kg. | ||
| Displacement-length ratio | 491 | 491 | ||
| Ballast, pounds | 2,200 lbs. | 998 kg. | ||
| Ballast ratio | 25% | 25% | ||
| Sail area | 603/560 sq. ft. | 56.02/52.03 m2. | ||
| Sail area-displacement ratio | 22.64/21.02 | 22.64/21.02 | ||
| Wetted Surface (W.S.) | 211 sq. ft. | 19.60 m2 | ||
| Sail Area/W.S. Ratio | 2.86/2.65 | 2.86/2.65 | ||
| Prismatic coefficient | .573 | .573 | ||
| Pounds per inch immersion | 633 | 113 kg./cm. | ||
| Entrance half-angle | 28 degrees | 28 degrees | ||
| Water tankage | 55 Gals. | 208 liters | ||
| Fuel tankage | 27 Gals. | 102 liters | ||
| Headroom | 6'-2" | 1.88 m | ||
| GM | 3' | 0.91 m | ||
| *CAUTION: The figure for displacement quoted here is for the boat in cruising trim. That is, with the fuel and water tanks filled, the crew on board, as well as the crews' gear and stores in the lockers. This should not be confused with the "shipping weight" often quoted as "displacement" by some manufacturers. This should be taken into account when comparing figure and ratios between this and other designs. | ||||
Photos:

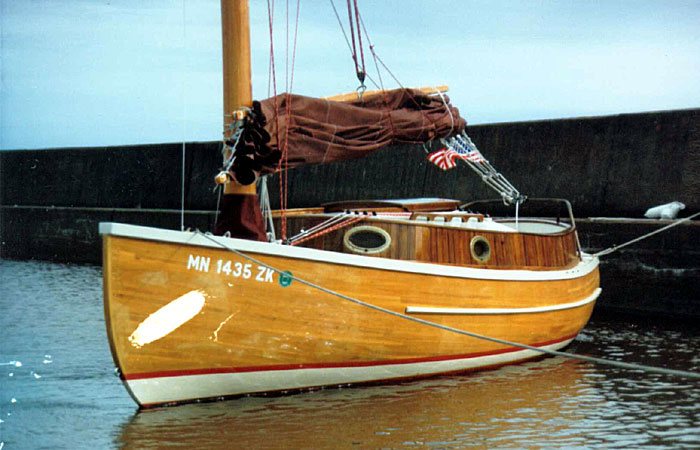

 19 Lug Sloop bow view moor |

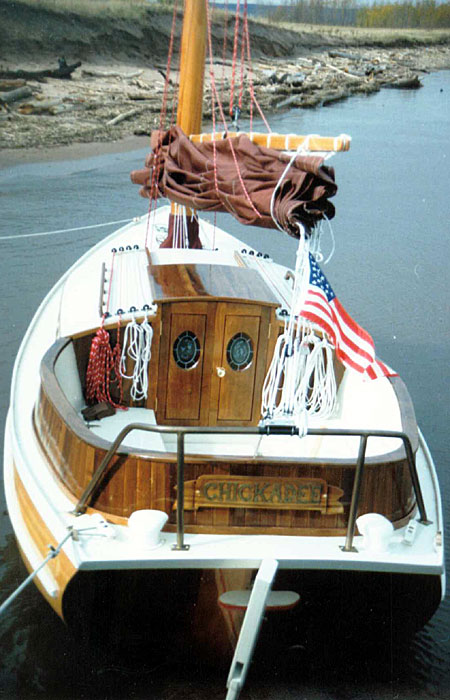

 19 Lug Sloop stern view mo |

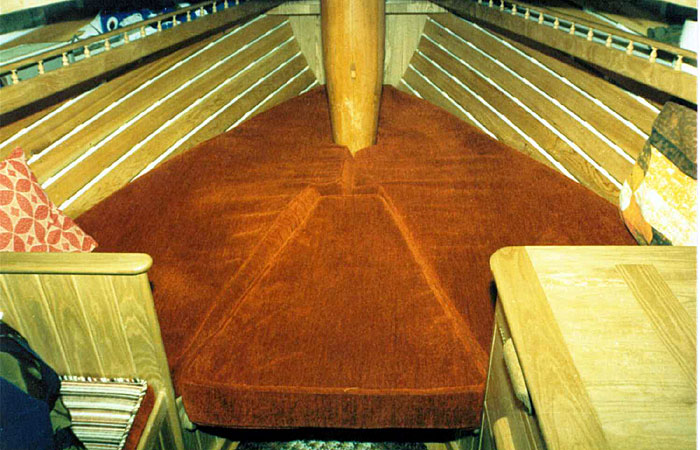

 19 Lug Sloop v berth with |

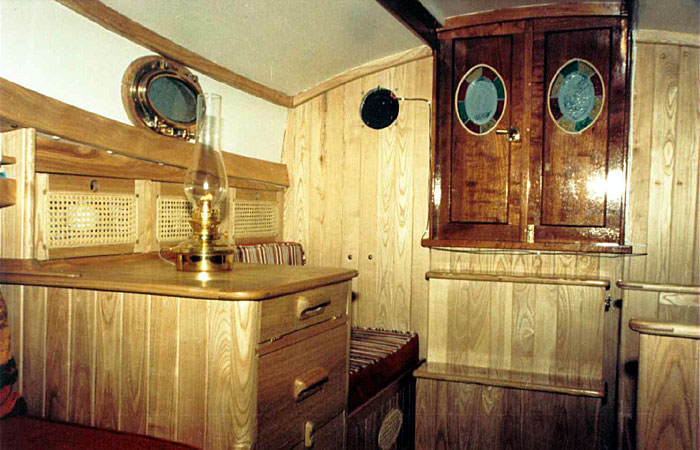

 19 Lug Sloop cabin looking |

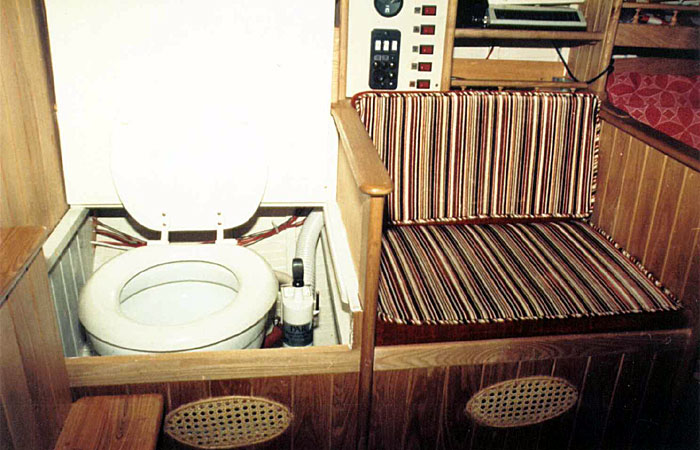

 19 Lug Sloop head |
 19 Lug Sloop head closed |

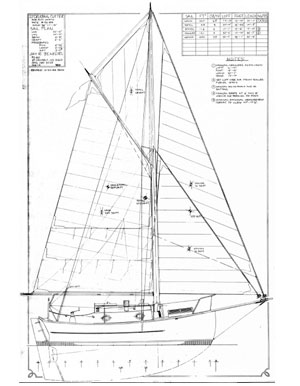

 22 Cruising Cutter Sail Pl |

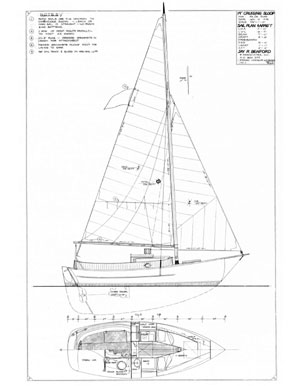

 19 Cruising Sloop Sail Pla |

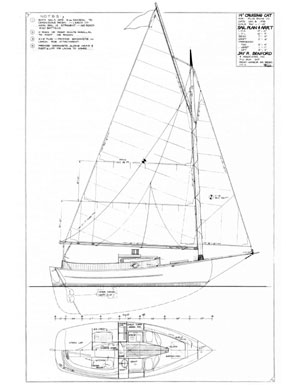

 19 Cruising Cat Sail Plan |
 19 Cruising Yawl Sail Plan |

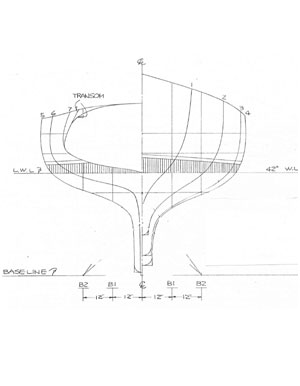

 19 Cruising Cat body plan |
